GLOBAL TOP-TIER LIGHTING FIXTURE MANUFACTURERS
1500Lux
International Match
Dynamic Compensation
The light sensor monitors illuminance in real time and automatically adjusts the lamp power, with a deviation of ≤ 5%.
Energy Consumption Management
It conducts zoned statistics on electricity consumption, automatically turns off lights in unused areas, and achieves an annual energy-saving rate of 30%-40%.
750Lux
Match Mode
500Lux
Training Mode
![](_script:Site.hoverQrCode("//10103032.s21i.faiusr.com/4/8/ABUIABAEGAAgiuj_vgYogayRpAYwyAE4yAE.png",this,{"tips":"Scan QRcode"});)
OUR CORE ADVANTAGES
Focusing on the field of sports lighting, we provide one-stop solutions from design to installation
to meet the professional needs of various venues.
Core Lighting Parameters and International Standards
Football stadium lighting needs to meet five core indicators: illuminance, uniformity, glare control, color rendering index, and color temperature. The specific requirements vary depending on the event level.
| Parameter | Amateur Training | Professional Matches | TV Broadcast (Standard Definition) | HD Broadcast International Events |
| Horizontal Illuminance (Lux) | ≥200 | ≥500 | ≥750 | ≥1000 |
| Uniformity (U1/U2) | ≥0.5/0.4 | ≥0.6/0.5 | ≥0.7/0.6 | ≥0.7/0.6 |
| Glare Rating (GR) | ≤50 | ≤40 | ≤35 | ≤30 |
| Color Rendering Index (Ra) | ≥70 | ≥80 | ≥85 | ≥90 |
| Color Temperature (K) | 5000-6000 | 5000-6000 | 5000-5500 | 5000-5500 |
Key Notes:
| ||||
Comparison of International Lighting Standards
Different standard systems have different focuses on the requirements for football stadium lighting,
and our solution is fully compatible with all major mainstream standards.
Lighting Layout Methods and Installation Specifications
The lighting layout for a football field needs to balance illuminance uniformity, glare control, and construction costs. The common methods include three types: four-corner lighting layout, two-side lighting layout, and mixed lighting layout.
Technical Key Points:
Case Example: The Cultural and Sports Center adopts the four-corner lighting layout, with 4 light poles (25 meters each) matched with 144 sets of 900W LED floodlights, meeting the requirements for HD broadcast. Four-Corner Lighting Layout For football stadiums without a canopy or with a low canopy | Technical Key Points:
Case Example: The Cultural and Sports Center adopts the four-corner lighting layout, with 4 light poles (25 meters each) matched with 144 sets of 900W LED floodlights, meeting the requirements for HD broadcast. Two-side Lighting Layout Medium-sized football field with stands | Technical Key Points:
Case Example: The Cultural and Sports Center adopts the four-corner lighting layout, with 4 light poles (25 meters each) matched with 144 sets of 900W LED floodlights, meeting the requirements for HD broadcast. Mixed Lighting Layout Large-scale Professional Football Stadium |
Luminaire Selection and Equipment Configuration
Choosing appropriate LED luminaires and supporting equipment is a key factor in ensuring the lighting effect of a football field.
The power of a single luminaire ranges from 300W to 1000W.
A standard football field requires 60 to 120 luminaires (with a total power of 18kW to 60kW).
For outdoor use, the protection level shall be ≥ IP66.
For coastal areas, IP67 is recommended, with resistance to level 17 winds.
Independent power supply box + finned heat sink
Light decay ≤ 3% per year to ensure long-term stable operation
Q235 hot-dip galvanized steel (stainless steel for coastal areas), with a wind resistance level of ≥ Level 10 (wind speed ≥ 100 km/h)
A lightning arrester shall be installed on the top of the light pole, with a grounding resistance of ≤ 4Ω to ensure equipment safety.
A UPS backup power supply shall be configured.
After a power outage, the emergency illuminance shall be ≥ 50 Lux, with a duration of ≥ 90 minutes.
Supports the DMX512 protocol。
Enables zoned dimming for refined management
Compared with traditional metal halide lamps, it saves more than 60% energy, has an ultra-long service life of 50,000 hours, and significantly reduces operating costs.
International Certifications
It has obtained multiple international certifications such as FIFA, CE, and RoHS, ensuring product quality and performance.

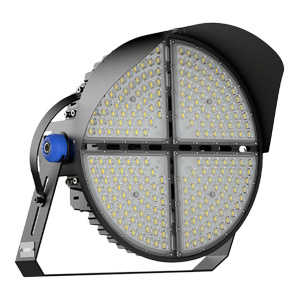

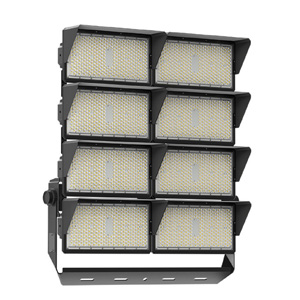

Professional Football Field Lighting Products
We provide professional football field lighting solutions that meet the standards of the Fédération Internationale de Football Association (FIFA), ensuring the best match experience and television broadcasting effects.
 Compliant with FIFA Tier 1 match standards, featuring a high luminous efficacy of 130-160 lm/W, an IP67 protection level, and a 5000K natural light color temperature.

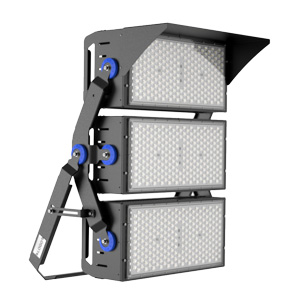

|  It supports zone control, brightness adjustment and scene presets, is compatible with DMX512 and PLC control systems, and comes with a remote monitoring function.

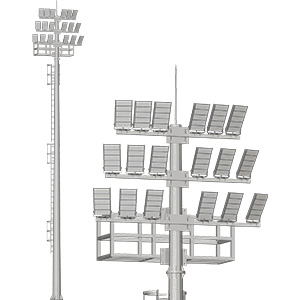

|  Height option: 15-25 meters Hot-dip galvanizing anti-corrosion treatment Designed to resist Level 12 typhoons Integrated cable management system
|
 Compliant with FIFA Tier 1 match standards, featuring a high luminous efficacy of 150-200 lm/W, an IP67 protection level, and a 5000K natural light color temperature.
| It supports zone control, brightness adjustment and scene presets, is compatible with DMX512 and PLC control systems, and comes with a remote monitoring function.
| Height option: 10-15 meters Hot-dip galvanizing anti-corrosion treatment Designed to resist Level 12 typhoons Integrated cable management system
|
Core Advantages of Professional Football Lighting
Our solutions integrate advanced technology and professional experience to provide comprehensive lighting support for various types of football fields.
High-Efficiency and Energy-Saving LEDs High-quality LED light sources are adopted, with a luminous efficacy of up to 140 lm/W, saving more than 60% energy compared with traditional metal halide lamps. |
Precise Light Distribution Design The optical system is customized according to the venue type, ensuring an illuminance uniformity of U1 ≥ 0.7 and no glare interference. | Intelligent Control System It supports quick switching of multiple scene modes, real-time monitoring and dynamic compensation, enabling refined management. |
Durable and Reliable It features an IP66 protection rating, operates in a wide temperature range of -40℃ to 70℃, has an ultra-long service life of 50,000 hours, and offers low maintenance costs. |
Classic Project Showcases
We have provided professional lighting solutions for over 200 football fields worldwide, and the following are some representative projects.
National Stadium Renovation Project A full set of lighting solutions is provided for the 60,000-capacity stadium, meeting the requirements of 4K ultra-high-definition broadcasting and achieving a lighting uniformity of over 0.9.
| Urban Community Football Center An energy-saving lighting system is provided for 5 standard football fields, featuring intelligent light sensor control. Compared with traditional solutions, it saves 65% energy and reduces light pollution by 40%.
|
University Stadium Los Angeles • USA | Football Training Base Rio de Janeiro • Brazil | Indoor Football Field Tokyo • Japan | Stadium Renovation Paris • France |
Application of Intelligent Lighting Systems
The refined management of football field lighting is achieved through intelligent technology, enhancing user experience and reducing energy consumption.
Multi-Scenario Modes Multiple lighting modes are preset to meet the needs of different scenarios, with a switching time of ≤ 10 seconds. |
|
Common Misunderstandings and Solutions
For common issues in the design and application of football field lighting, professional solutions are provided.
Misunderstanding: Blindly increasing power leads to energy waste and excessive glare. Solution: Determine the total luminous flux through illuminance calculation (e.g., a 11-a-side football field requires 1.336 million lumens), and then reasonably allocate the number of lamps. |
Misunderstanding: Using luminaires with wide beam angles on high light poles leads to a decrease in illuminance uniformity. Solution: Equip high light poles with narrow beam angles (15°-30°) and low light poles with medium-wide beam angles (45°-60°). |
Misunderstanding: Relying solely on backup generators results in excessively long response times. Solution: Adopt LED luminaires with energy storage modules, which can activate emergency lighting within 1 second after a power outage, with an illuminance of ≥ 50Lux. |
Professional Football Lighting Solutions
The lighting design of football stadiums should be based on international standards, centered on lighting layout methods, and supported by intelligent control as an efficiency-enhancing means. We provide one-stop services from solution design to installation and commissioning, creating a professional, efficient, and intelligent football field lighting system for you.
Get Your Exclusive Lighting Solution Fill in your venue information, and our professional team will provide you with a customized football lighting solution. Venue Type * Main Purpose * Phone Number * Email * Get Solution Design |
|
|
|
